TUBES OCTOBER 2026
Palcový Kód Rovnocenná velikost Verze Tloušťka (mm) Ventil

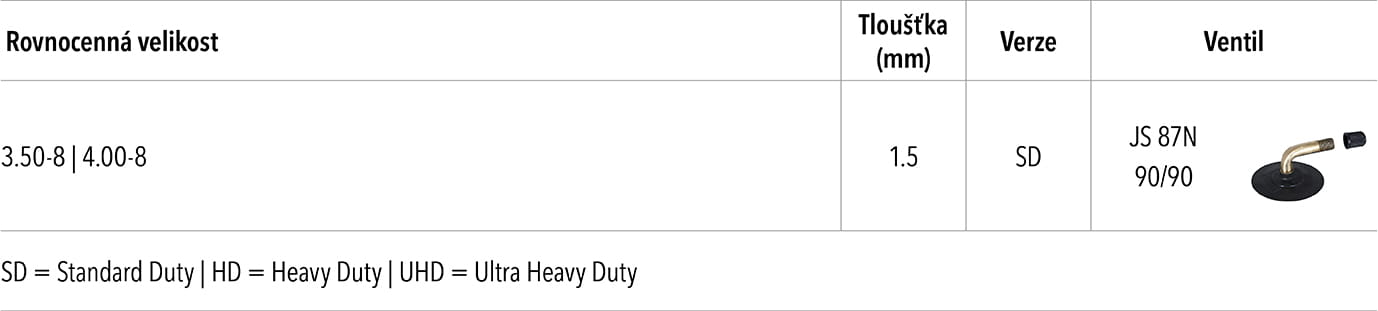

8 70001312 3.50- //4.00-8 STANDARD DUTY 1.5 JS 87 90/90

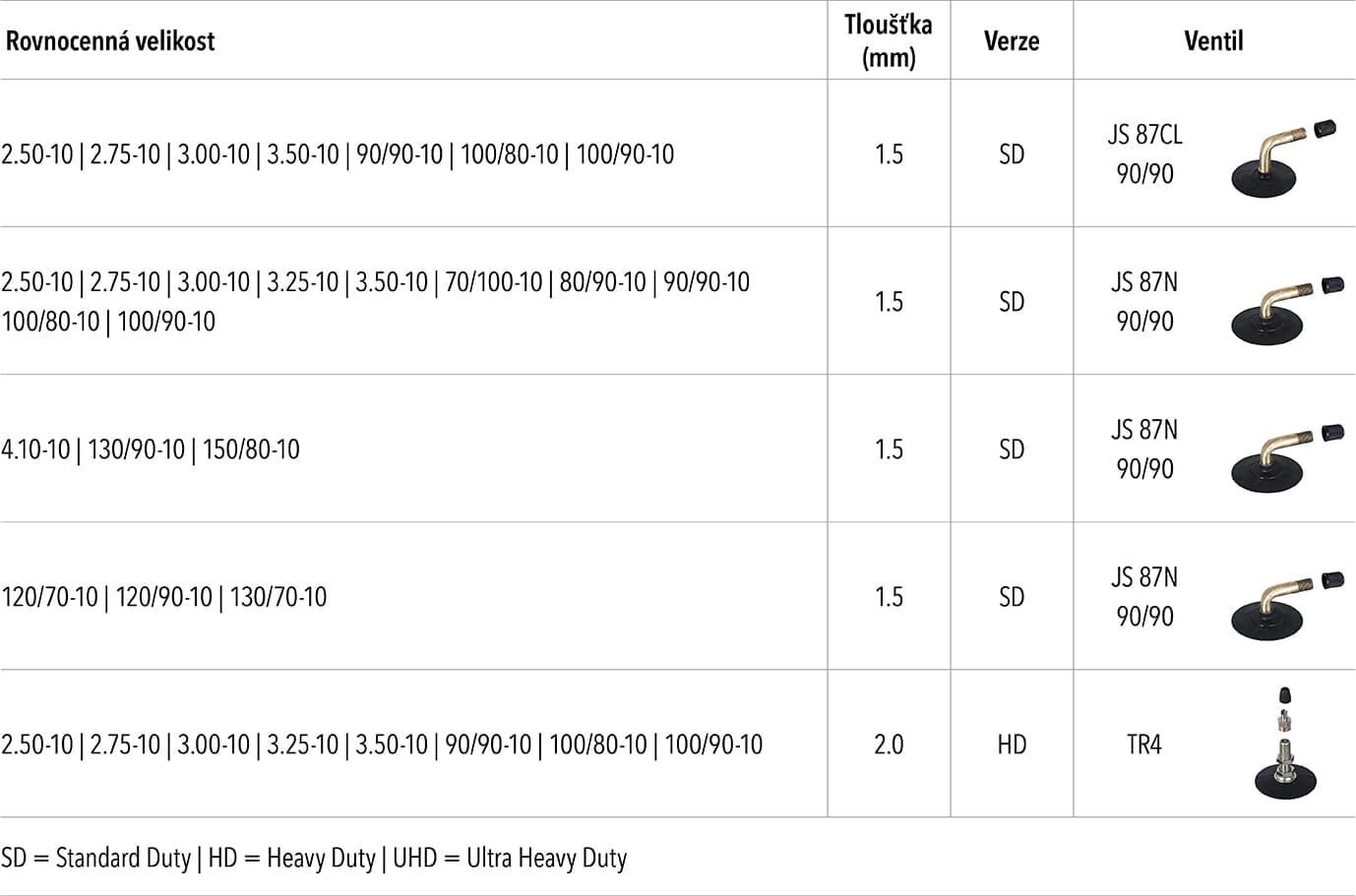

10 70001315 120/70-10, 120/90-10, 130/70-10 STANDARD DUTY 1.5 JS 87N 90/90
10 70001317 2.50- //2.75- //3.00- //3.50-10, 90/90- //100/80- //100/90-10 STANDARD DUTY 1.5 JS 87Cl 90/90
10 70001313 2.50- //2.75- //3.00- //3.25- //3.50-10, 70/100- //80/90- //90/90- //100/80- //100/90-10 STANDARD DUTY 1.5 JS 87N 90/90
10 70001316 4.10-10, 130/90- //150/80-10 STANDARD DUTY 1.5 JS 87N 90/90
10 70001314 2.50- //2.75- //3.00- //3.25- //3.50-1090/90- //100/80- //100/90-10 HEAVY DUTY 2 TR4

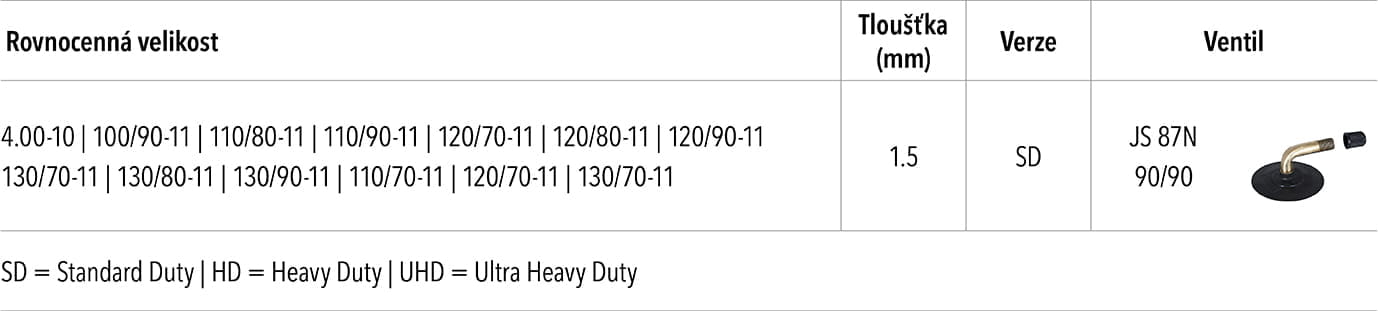

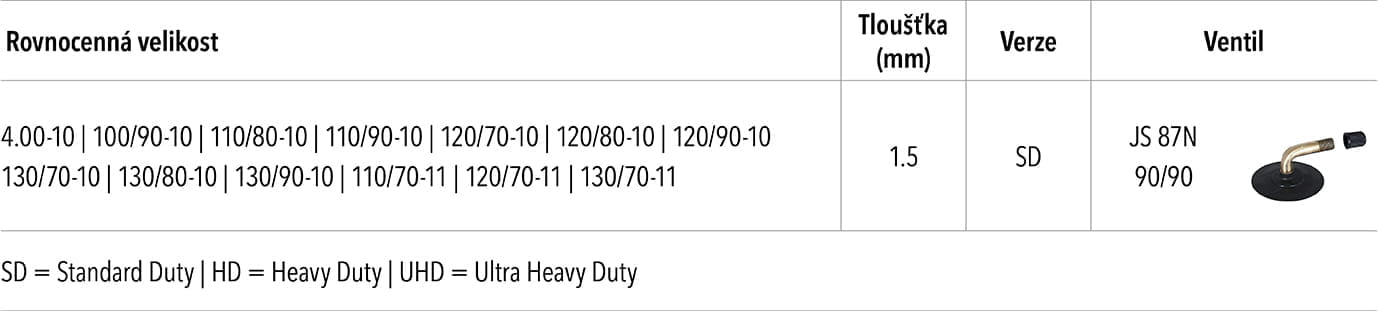

10/11 70001357 4.00-10, 100/90- //110/80- //110/90- //120/70- //120/80- //120/90- //130/70- //130/80- //130/90-10, 110/70- //120/70- //130/70-11 STANDARD DUTY 1.5 JS 87N 90/90

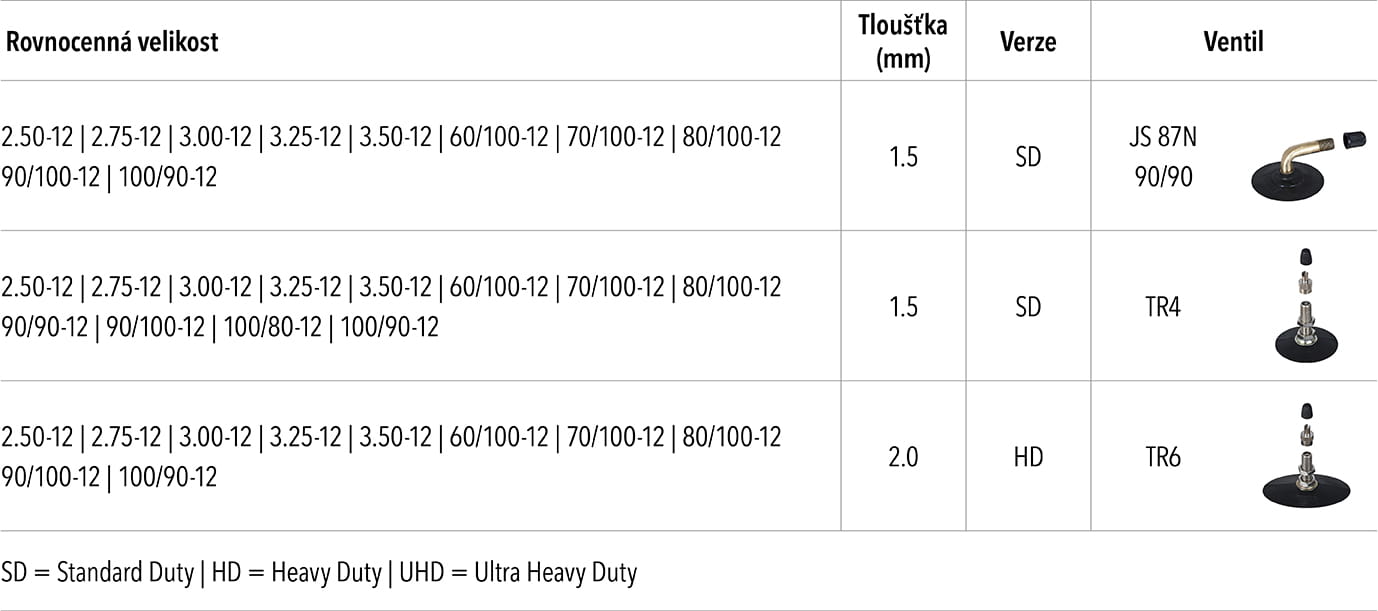

12 70001318 2.50- //2.75- //3.00- //3.25- //3.50-12, 60/100- //70/100- //80/100- //90/90- //90/100- //100/80- //100/90-12 STANDARD DUTY 1.5 TR4
12 70001320 2.50- //2.75- //3.00- //3.25- //3.50-12, 60/100- //70/100- //80/100- //90/100- //100/90-12 STANDARD DUTY 1.5 JS 87N 90/90
12 70001319 2.50- //2.75- //3.00- //3.25- //3.50-1260/100- //70/100- //80/100- //90/100- //100/90-12 HEAVY DUTY 2 TR6

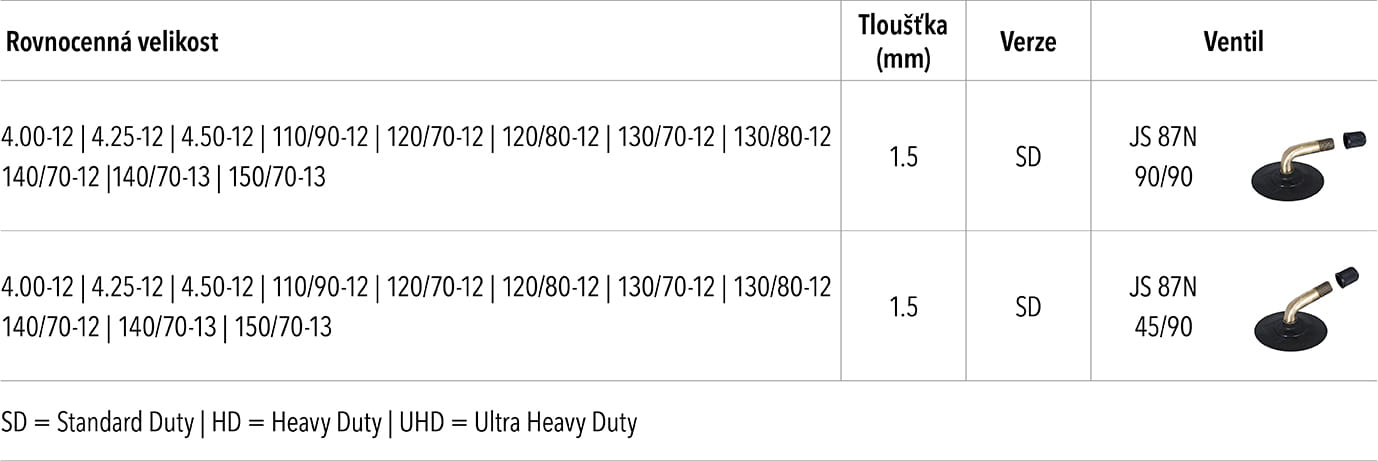

12/13 70001358 4.00- //4.25- //4.50-12, 110/90- //120/70- //120/80- //130/70- //130/80- //140/70-12, //140/70- //150/70-13 STANDARD DUTY 1.5 JS 87N 45/90
12/13 70001359 4.00- //4.25- //4.50-12, 110/90- //120/70- //120/80- //130/70- //130/80- //140/70-12, //140/70- //150/70-13 STANDARD DUTY 1.5 JS 87N 90/90

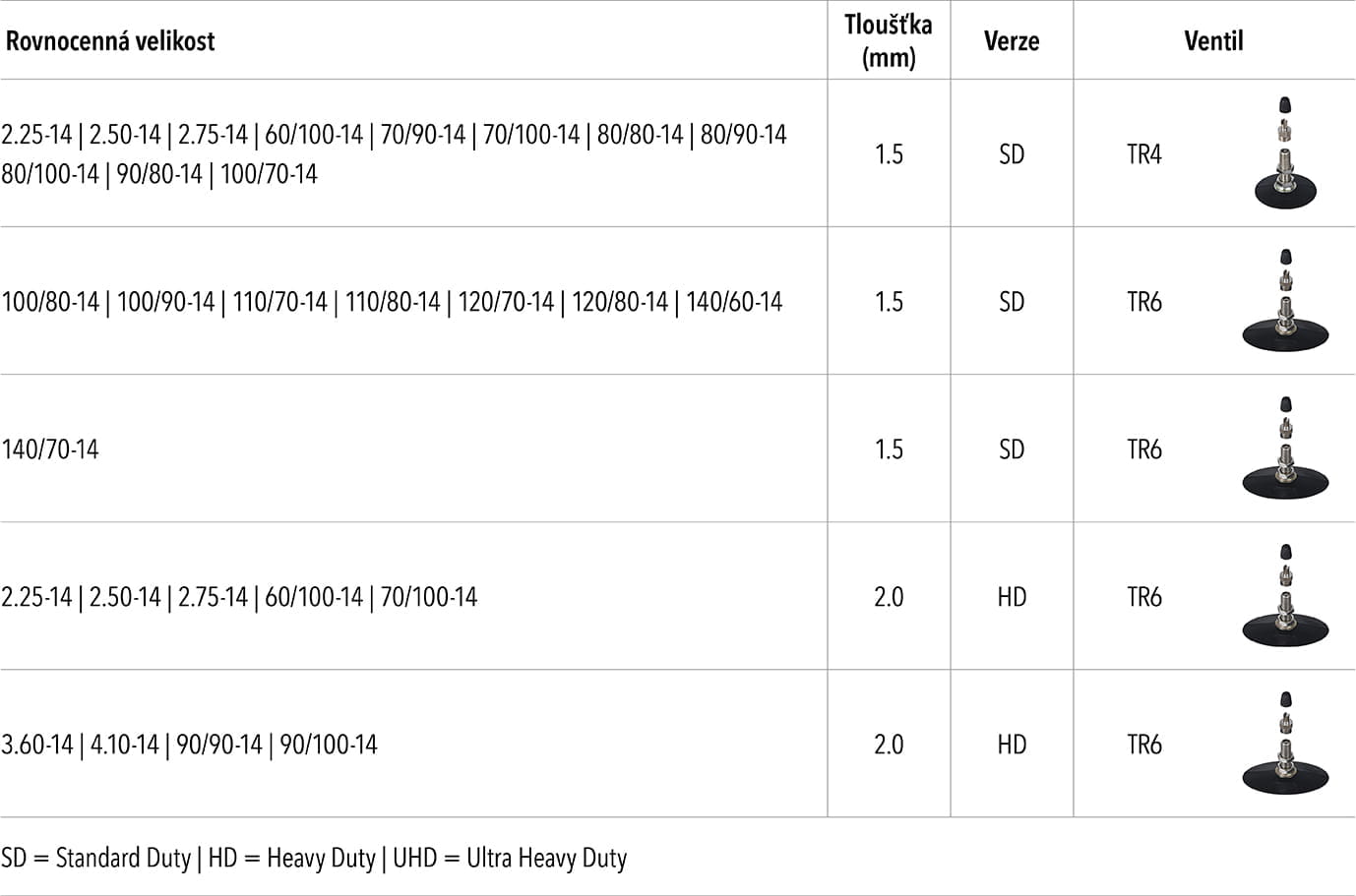

14 70001324 100/80-14, 100/90-14, 110/70-14, 110/80-14, 120/70-14, 120/80-14, 140/60-14 STANDARD DUTY 1.5 TR6
14 70001325 140/70-14 STANDARD DUTY 1.5 TR6
14 70001322 2.25- //2.50- //2.75-14, 60/100- //70/90- //70/100- //80/80- //80/90- // 80/100- // 90/80- //100/70-14 STANDARD DUTY 1.5 TR4
14 70001321 2.25- //2.50- //2.75-14, 60/100- //70/100-14 HEAVY DUTY 2 TR6
14 70001323 3.60- //4.10-14, 90/90- //90/100-14 HEAVY DUTY 2 TR6

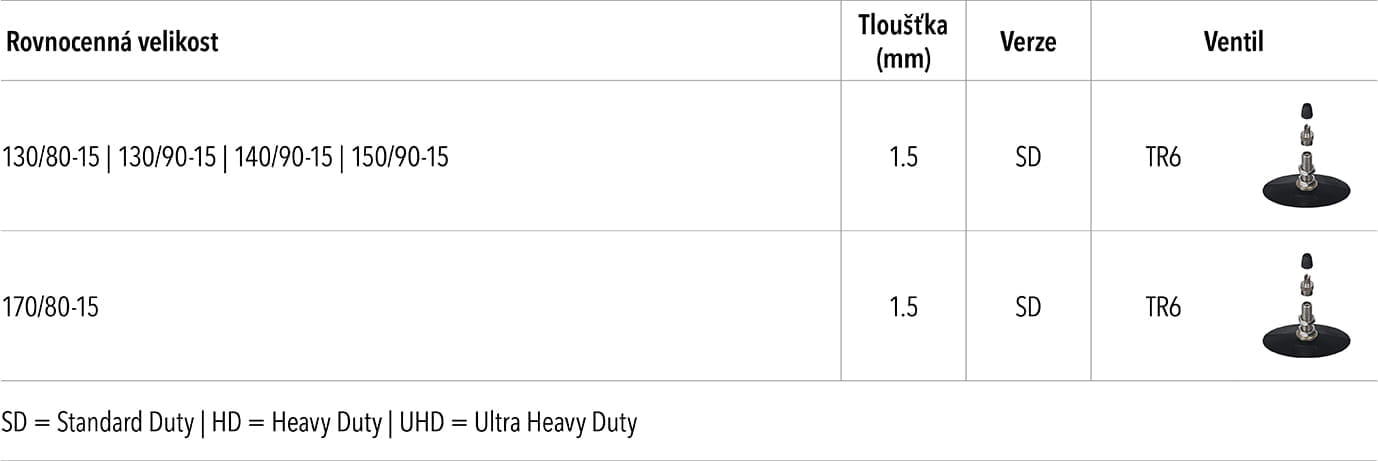

15 70001326 130/80-15, 130/90-15, 140/90-15, 150/90-15 STANDARD DUTY 1.5 TR6
15 70001360 170/80-15 STANDARD DUTY 1.5 TR6

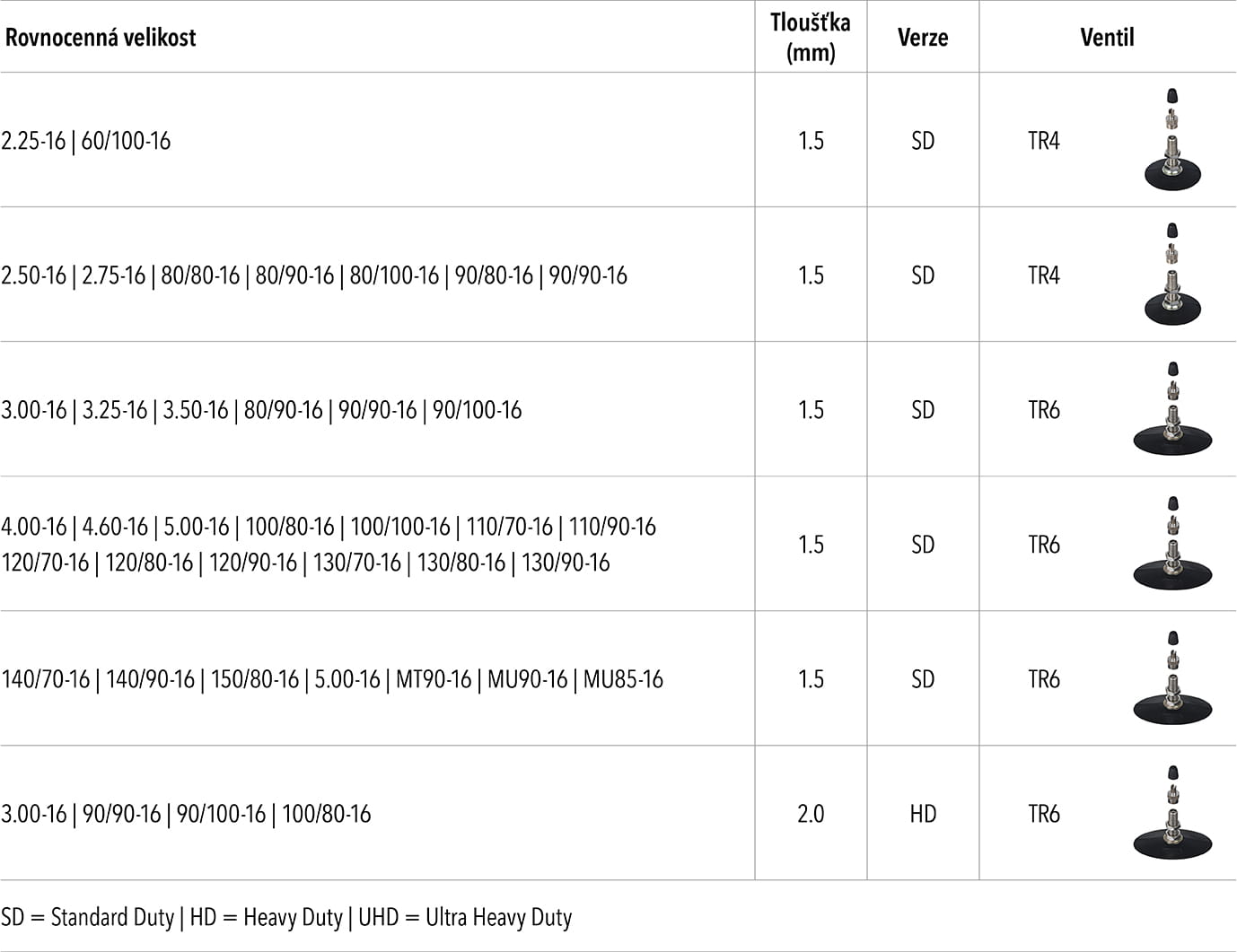

16 70001333 140/70-16, 140/90-16, 150/80-16, 5.00-16, MT90-16, MU90-16, MU85-16 STANDARD DUTY 1.5 TR6
16 70001330 2.25-16, 60/100-16 STANDARD DUTY 1.5 TR4
16 70001328 2.50- //2.75-16, 80/80- //80/90- //80/100- //90/80- //90/90-16 STANDARD DUTY 1.5 TR4
16 70001327 3.00- //3.25- //3.50-16, 80/90- //90/90- //90/100-16 STANDARD DUTY 1.5 TR6
16 70001332 4.00- //4.60- //5.00-16, 100/80- //100/100- //110/70- //110/90- //120/70- //120/80- //120/90- //130/70- //130/80- //130/90-16 STANDARD DUTY 1.5 TR6
16 70001331 3.00-1690/90- //90/100- //100/80-16 HEAVY DUTY 2 TR6

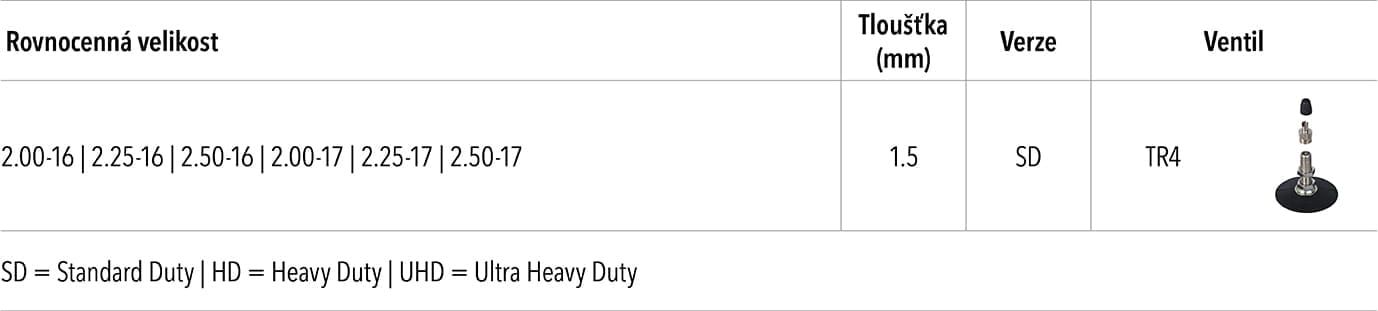

16/17 70001329 2.00- //2.25- //2.50-16, 2.00- //2.25- //2.50-17 STANDARD DUTY 1.5 TR4

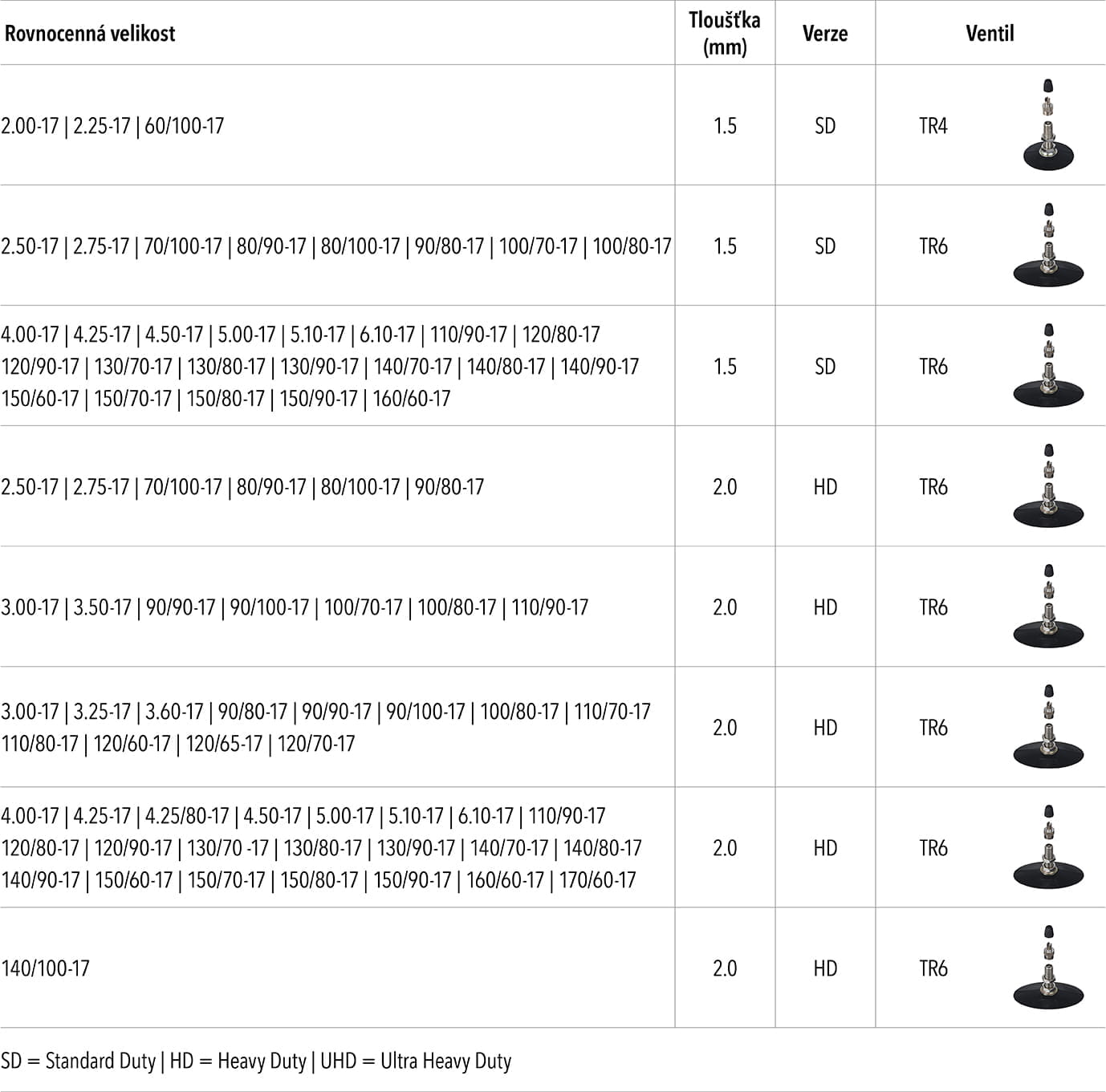

17 70001339 2.00- //2.25-17, 60/100-17 STANDARD DUTY 1.5 TR4
17 70001340 2.50- //2.75-17, 70/100- // 80/90- //80/100- //90/80- //100/70- //100/80-17 STANDARD DUTY 1.5 TR6
17 70001338 4.00- //4.25- //4.50- //5.00- //5.10- //6.10-17, 4.25/80-17, 110/90- //120/80- //120/90- //130/70 - //130/80- //130/90- //140/70- //140/80- //140/90- //150/60- //150/70- //150/80- //150/90- //160/60-17 STANDARD DUTY 1.5 TR6
17 70001334 2.50- //2.75-17, 70/100- //80/90- //80/100- //90/80-17 HEAVY DUTY 2 TR6
17 70001336 3.00- //3.25- //3.60-17, 90/80- //90/90- //90/100- //100/80- //110/70- //110/80- //120/60- //120/65- //120/70-17 HEAVY DUTY 2 TR6
17 70001335 3.00- //3.50-17, 90/90- //90/100- //100/70- //100/80- //110/90-17 HEAVY DUTY 2 TR6
17 70001337 4.00- //4.25- //4.50- //5.00- //5.10- //6.10-17, 4.25/80-17, 110/90- //120/80- //120/90- //130/70 - //130/80- //130/90- //140/70- //140/80- //140/90- //150/60- //150/70- //150/80- //150/90- //160/60- //170/60-17 HEAVY DUTY 2 TR6

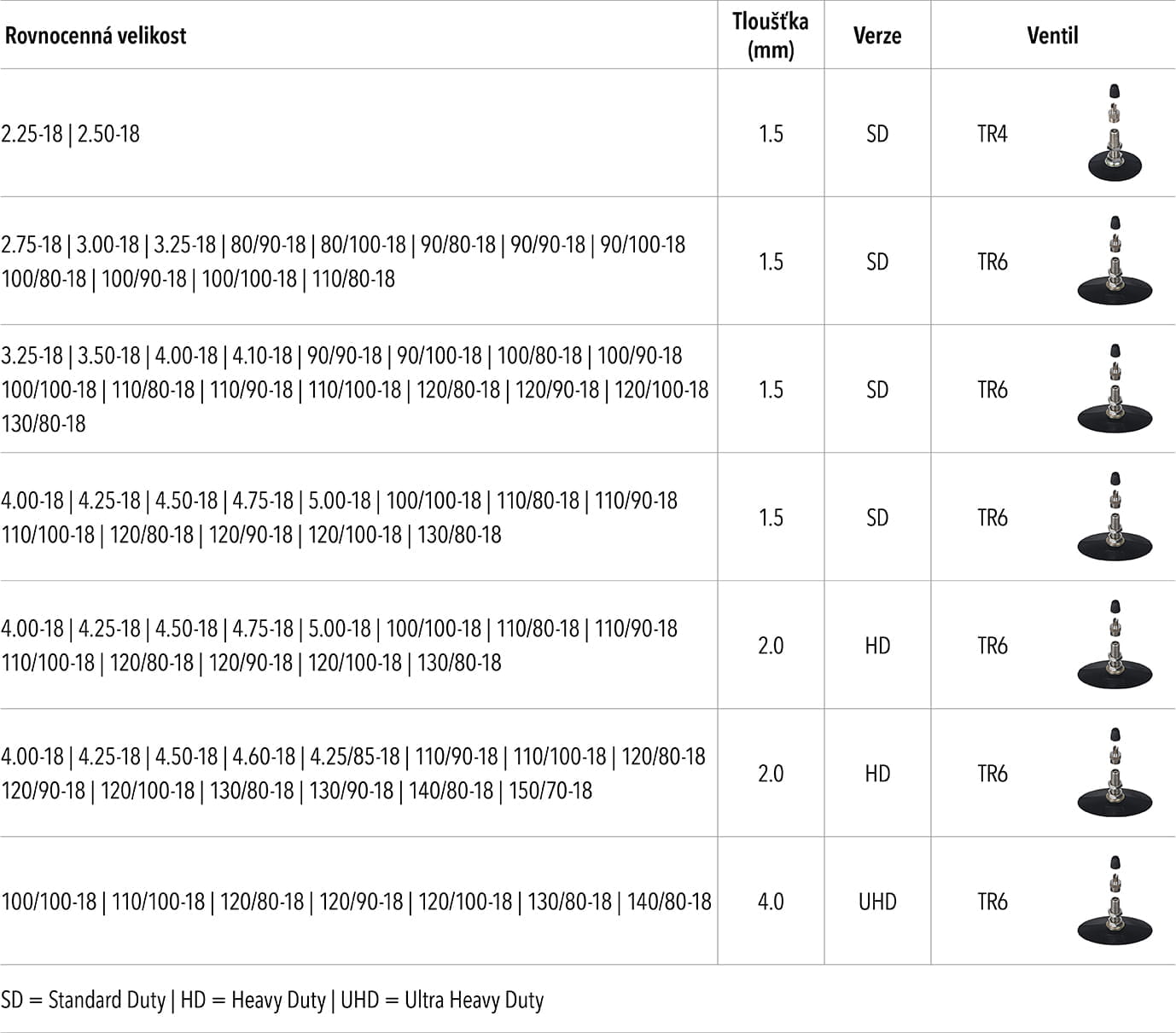

18 70001348 2.25- //2.50-18 STANDARD DUTY 1.5 TR4
18 70001347 2.75- //3.00- //3.25-18, 80/90- //80/100- //90/80- //90/90- //90/100- //100/80- //100/90- //100/100- //110/80-18 STANDARD DUTY 1.5 TR6
18 70001346 3.25- //3.50- //4.00- //4.10-18, 90/90- //90/100- //100/80- //100/90- //100/100- //110/80- //110/90- //110/100- //120/80- //120/90- //120/100- //130/80-18 STANDARD DUTY 1.5 TR6
18 70001349 4.00- //4.25- //4.50- //4.75- //5.00-18, 100/100- //110/80- //110/90- //110/100- //120/80- //120/90- //120/100- //130/80-18 STANDARD DUTY 1.5 TR6
18 70001345 4.00- //4.25- //4.50- //4.60- //4.25/85-18, //110/90- //110/100- //120/80- //120/90- //120/100- //130/80- //130/90- //140/80- //150/70-18 HEAVY DUTY 2 TR6
18 70001343 4.00- //4.25- //4.50- //4.75- //5.00-18, 100/100- //110/80- //110/90- //110/100- //120/80- //120/90- //120/100- //130/80-18 HEAVY DUTY 2 TR6
18 70001344 100/100- //110/100- //120/80- //120/90- //120/100- //130/80- //140/80-18 ULTRA HEAVY DUTY 4 TR6

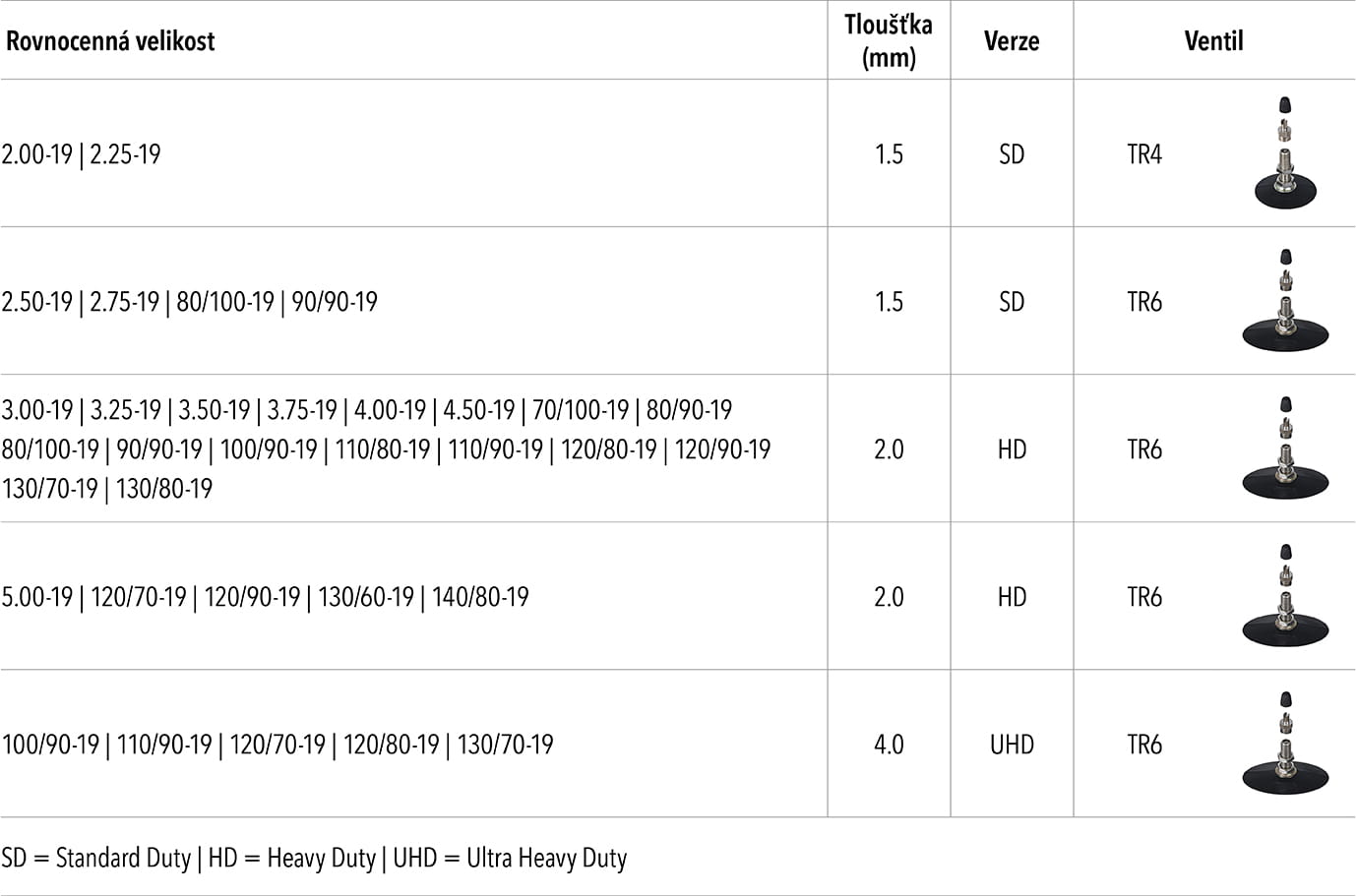

19 70001354 2.00- //2.25-19 STANDARD DUTY 1.5 TR4
19 70001353 2.50- //2.75-19, 80/100- //90/90-19 STANDARD DUTY 1.5 TR6
19 70001351 3.00- //3.25- //3.50- //3.75- //4.00- //4.50-19, 70/100- //80/90- //80/100- //90/90- //100/90- //110/80- //110/90- //120/80- //120/90- //130/70- //130/80-19 HEAVY DUTY 2 TR6
19 70001350 5.00-19, 120/70- //120/90- //130/60- //140/80-19 HEAVY DUTY 2 TR6
19 70001352 100/90- //110/90- //120/70- //120/80- //130/70-19 ULTRA HEAVY DUTY 4 TR6
21 70001361 2.50- //2.75- //3.00- //3.25- //3.60-21, 80/90- //80/100- //90/80- //90/90- //90/100- //100/80-21 STANDARD DUTY 1.5 TR6
21 70001356 2.50- //2.75- //3.00- //3.25- //3.60-2180/90- //80/100- //90/80- //90/90- //90/100- //100/80-21 HEAVY DUTY 2 TR6
21 70001355 2.50- //2.75- //3.00- //3.25- //3.60-21, 80/90- //80/100- //90/80- //90/90- //90/100- //100/80-21 ULTRA HEAVY DUTY 4 TR6

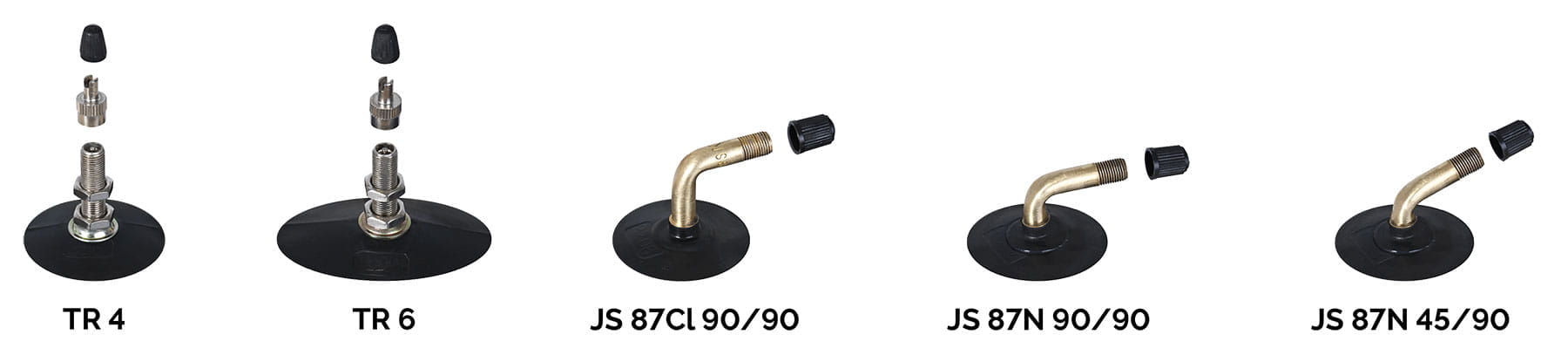

mitas_tube_valves
